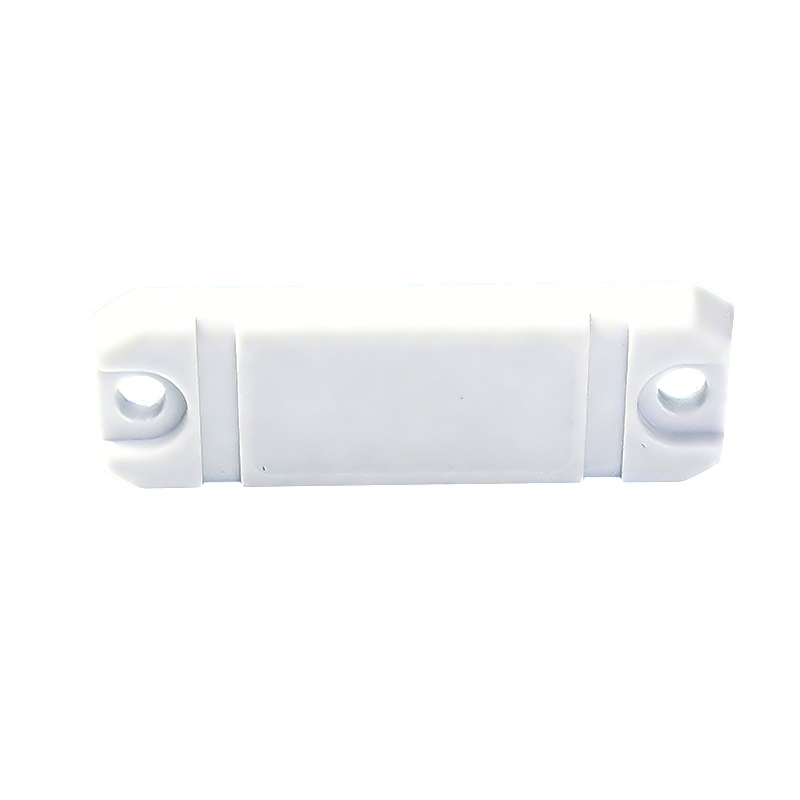

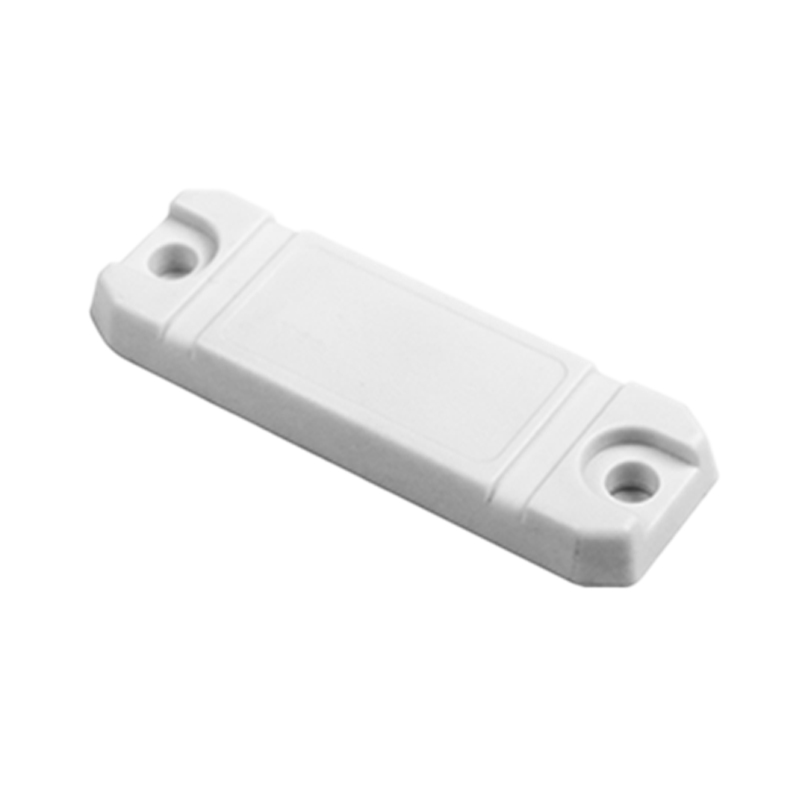

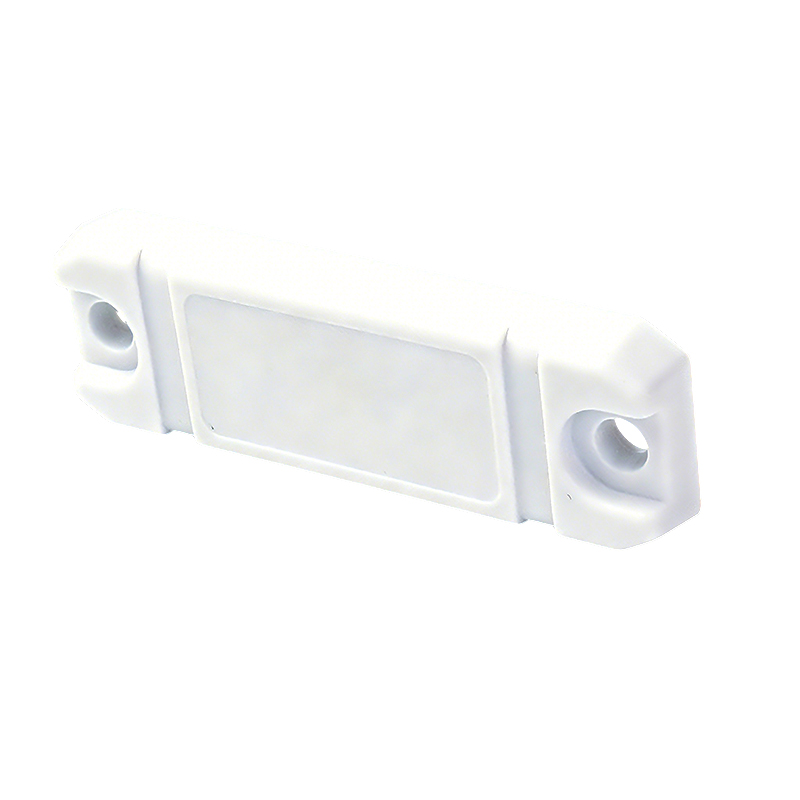

GZY-A6923
UHF RFID Rugged Tags
ABS + PC shell label, size 69×23×7mm. It offers four installation methods: adhesive, screws, rivets, and cable ties. It is suitable for various indoor and outdoor scenarios. The farthest reading distance on metal surfaces reaches 11 meters, with IP68 protection. It is suitable for asset management at medium and long distances in shelves, pallets, equipment, etc.
/
Micro anti - metal RFID tag
Features
-
Moderate 69x23mm -
Maximum 11 Meters -
IP68 Protection Rating -
Customizable Chip (NXP UCODE8/9 /M730) -
High/Low Temperature Cycle Tested -
Flexible Installation Options
Specifications
-
Physical Features
Model GZY-A6923
Size 69(L)x23(W)x7(H)mm, (Hole:D5.2mmx2) Material ABS+PC
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 10.8g
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-11.0m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Applications
